This is a real ICS service call report, with the customer, address, names and prices removed.

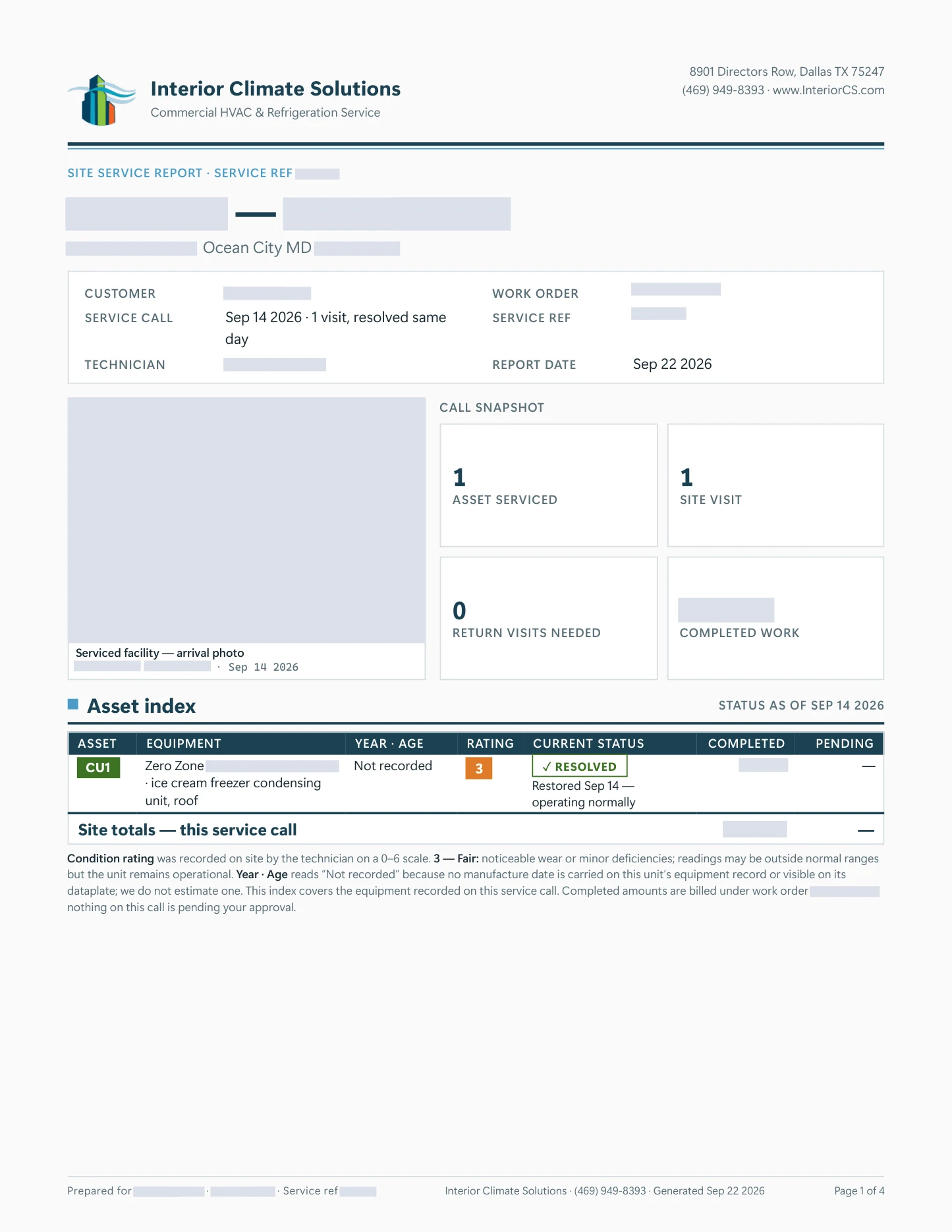

The call at a glance
The first page tells you whether the store is fixed.
It names the site and the call, then counts what the call covered: one asset serviced, one site visit, no return visits needed. The asset index lists CU1, the rooftop condensing unit for the ice cream freezer, as resolved on September 14 and operating normally.
CU1 resolved September 14, operating normally
Condition rated 3 of 6 on site
Year and age left blank when the dataplate has no build date
Read this report page as text
Interior Climate Solutions
Commercial HVAC & Refrigeration Service
8901 Directors Row, Dallas TX 75247
(469) 949-8393 · www.InteriorCS.com
SITE SERVICE REPORT · SERVICE REF
,
Ocean City MD
CUSTOMER
WORK ORDER
SERVICE CALL
Sep 14 2026 · 1 visit, resolved same
day
SERVICE REF
TECHNICIAN
REPORT DATE
Sep 22 2026
Serviced facility, arrival photo
· Sep 14 2026
CALL SNAPSHOT
1
ASSET SERVICED
1
SITE VISIT
0
RETURN VISITS NEEDED
COMPLETED WORK
Asset index
STATUS AS OF SEP 14 2026
ASSET
EQUIPMENT
YEAR · AGE
RATING
CURRENT STATUS
COMPLETED
PENDING
CU1
Zero Zone
· ice cream freezer condensing
unit, roof
Not recorded
3
✓ RESOLVED
Restored Sep 14,
operating normally
,
Site totals, this service call
,
Condition rating was recorded on site by the technician on a 0-6 scale. 3, Fair: noticeable wear or minor deficiencies; readings may be outside normal ranges
but the unit remains operational. Year · Age reads “Not recorded” because no manufacture date is carried on this unit’s equipment record or visible on its
dataplate; we do not estimate one. This index covers the equipment recorded on this service call. Completed amounts are billed under work order
nothing on this call is pending your approval.
Prepared for
·
· Service ref
Interior Climate Solutions · (469) 949-8393 · Generated Sep 22 2026
Page 1 of 4

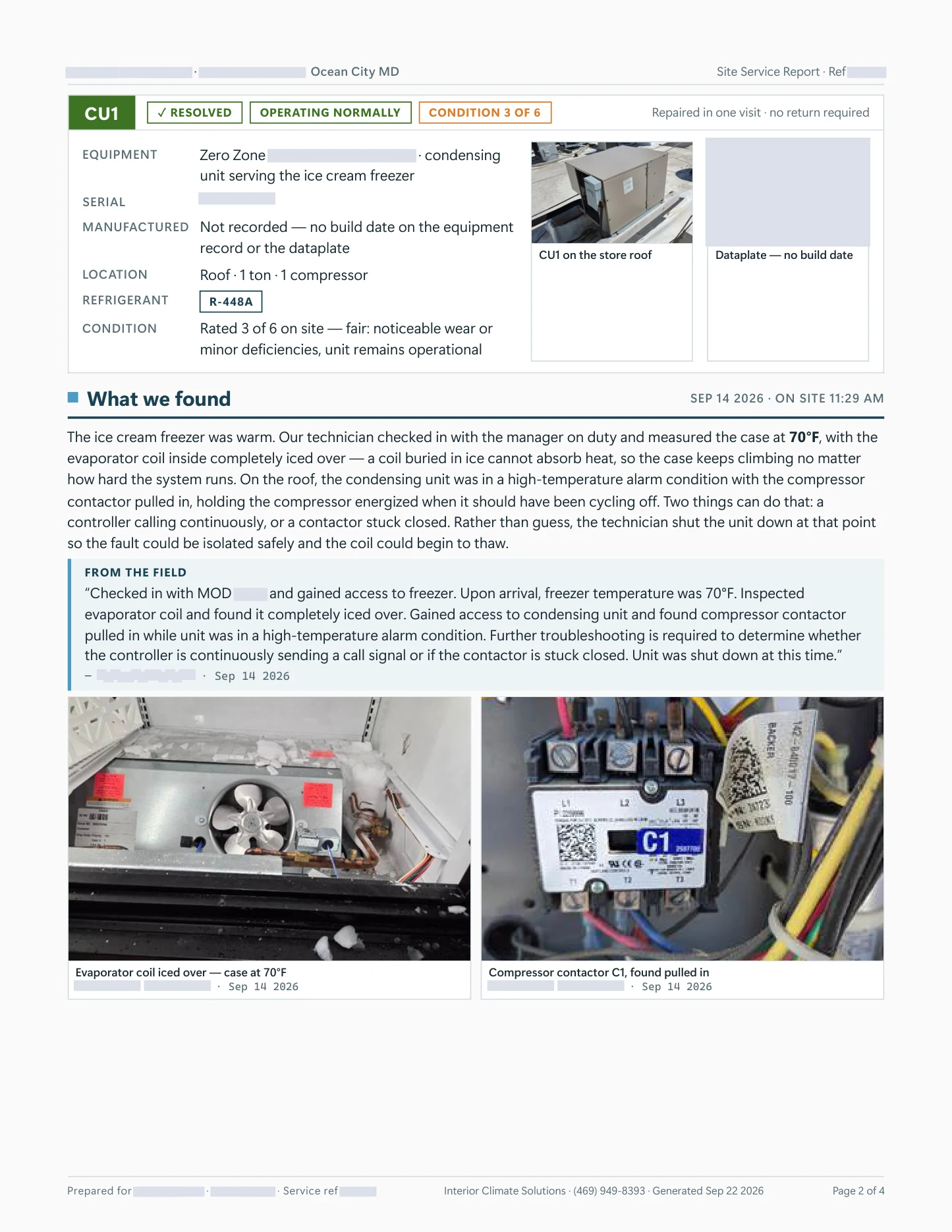

The freezer was at 70°F and its coil was iced solid.
Our technician arrived at 11:29 a.m., checked in with the manager on duty and found the ice cream case at 70°F. On the roof, the compressor contactor was pulled in while the unit was in a high-temperature alarm. Either the controller was calling nonstop or the contactor was stuck closed, so the unit was shut down while the fault was isolated.
Case at 70°F on arrival
Evaporator coil completely iced over
Contactor pulled in during a high-temperature alarm
Read this report page as text
·
Ocean City MD
Site Service Report · Ref
CU1
✓ RESOLVED
OPERATING NORMALLY
CONDITION 3 OF 6
Repaired in one visit · no return required
EQUIPMENT
Zero Zone
· condensing
unit serving the ice cream freezer
SERIAL
MANUFACTURED Not recorded, no build date on the equipment
record or the dataplate
LOCATION
Roof · 1 ton · 1 compressor
REFRIGERANT
R-448A
CONDITION
Rated 3 of 6 on site, fair: noticeable wear or
minor deficiencies, unit remains operational
CU1 on the store roof
Dataplate, no build date
What we found
SEP 14 2026 · ON SITE 11:29 AM
The ice cream freezer was warm. Our technician checked in with the manager on duty and measured the case at 70°F, with the
evaporator coil inside completely iced over, a coil buried in ice cannot absorb heat, so the case keeps climbing no matter
how hard the system runs. On the roof, the condensing unit was in a high-temperature alarm condition with the compressor
contactor pulled in, holding the compressor energized when it should have been cycling off. Two things can do that: a
controller calling continuously, or a contactor stuck closed. Rather than guess, the technician shut the unit down at that point
so the fault could be isolated safely and the coil could begin to thaw.
FROM THE FIELD
“Checked in with MOD
and gained access to freezer. Upon arrival, freezer temperature was 70°F. Inspected
evaporator coil and found it completely iced over. Gained access to condensing unit and found compressor contactor
pulled in while unit was in a high-temperature alarm condition. Further troubleshooting is required to determine whether
the controller is continuously sending a call signal or if the contactor is stuck closed. Unit was shut down at this time.”
,
· Sep 14 2026
Evaporator coil iced over, case at 70°F
· Sep 14 2026
Compressor contactor C1, found pulled in
· Sep 14 2026
Prepared for
·
· Service ref
Interior Climate Solutions · (469) 949-8393 · Generated Sep 22 2026
Page 2 of 4

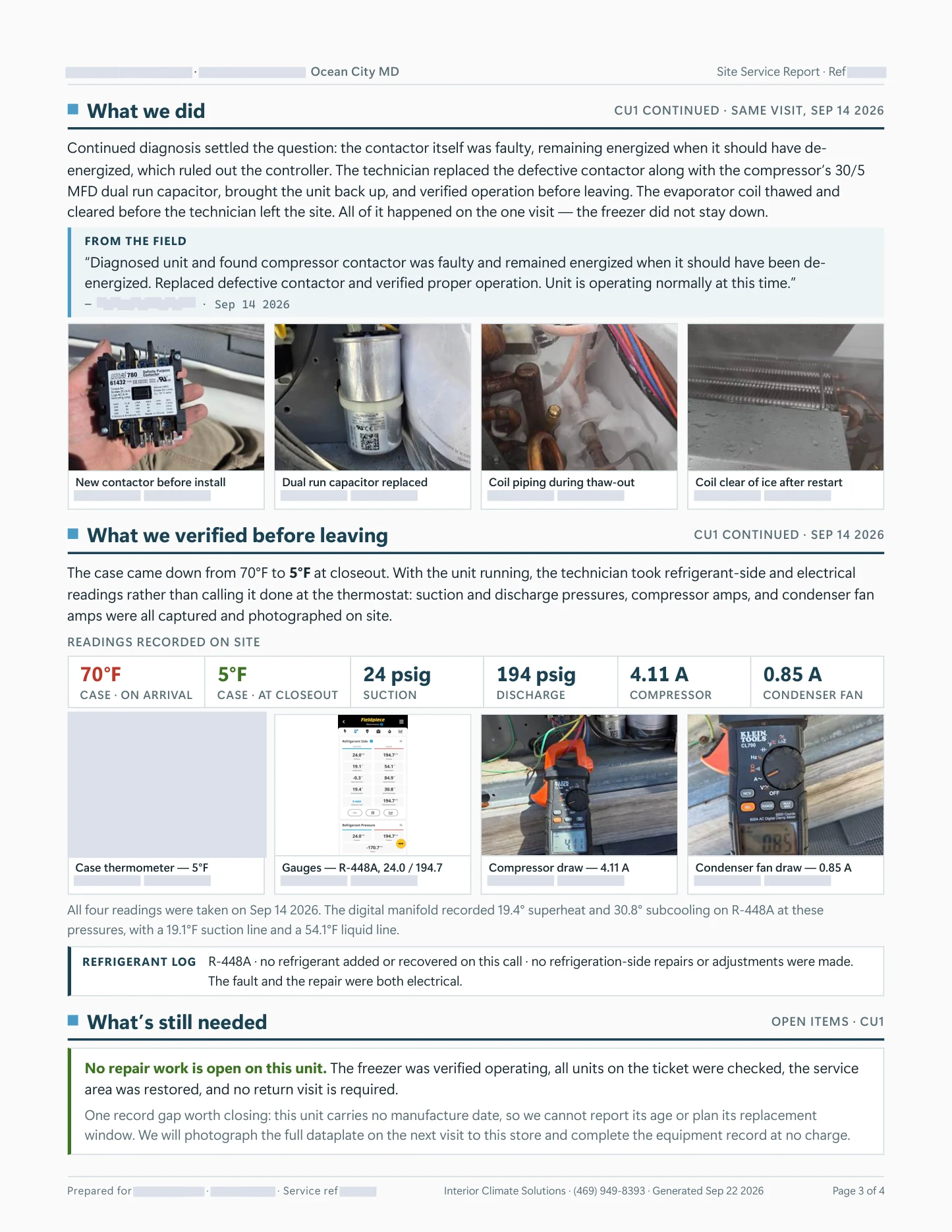

The contactor was faulty, and it was replaced on the same visit.
Further diagnosis ruled out the controller. The technician replaced the contactor and the compressor’s 30/5 MFD dual run capacitor, restarted the unit and took readings before leaving, each one photographed. No refrigerant was added or recovered, because the fault and the repair were both electrical.
Case 70°F on arrival, 5°F at closeout
Suction 24 psig, discharge 194 psig, compressor 4.11 A
Condenser fan 0.85 A
Read this report page as text
·
Ocean City MD
Site Service Report · Ref
What we did
CU1 CONTINUED · SAME VISIT, SEP 14 2026
Continued diagnosis settled the question: the contactor itself was faulty, remaining energized when it should have de-
energized, which ruled out the controller. The technician replaced the defective contactor along with the compressor’s 30/5
MFD dual run capacitor, brought the unit back up, and verified operation before leaving. The evaporator coil thawed and
cleared before the technician left the site. All of it happened on the one visit, the freezer did not stay down.
FROM THE FIELD
“Diagnosed unit and found compressor contactor was faulty and remained energized when it should have been de-
energized. Replaced defective contactor and verified proper operation. Unit is operating normally at this time.”
,
· Sep 14 2026
New contactor before install
Dual run capacitor replaced
Coil piping during thaw-out
Coil clear of ice after restart
What we verified before leaving
CU1 CONTINUED · SEP 14 2026
The case came down from 70°F to 5°F at closeout. With the unit running, the technician took refrigerant-side and electrical
readings rather than calling it done at the thermostat: suction and discharge pressures, compressor amps, and condenser fan
amps were all captured and photographed on site.
READINGS RECORDED ON SITE
70°F
CASE · ON ARRIVAL
5°F
CASE · AT CLOSEOUT
24 psig
SUCTION
194 psig
DISCHARGE
4.11 A
COMPRESSOR
0.85 A
CONDENSER FAN
Case thermometer, 5°F
Gauges, R-448A, 24.0 / 194.7
Compressor draw, 4.11 A
Condenser fan draw, 0.85 A
All four readings were taken on Sep 14 2026. The digital manifold recorded 19.4° superheat and 30.8° subcooling on R-448A at these
pressures, with a 19.1°F suction line and a 54.1°F liquid line.
REFRIGERANT LOG
R-448A · no refrigerant added or recovered on this call · no refrigeration-side repairs or adjustments were made.
The fault and the repair were both electrical.
What’s still needed
OPEN ITEMS · CU1
No repair work is open on this unit. The freezer was verified operating, all units on the ticket were checked, the service
area was restored, and no return visit is required.
One record gap worth closing: this unit carries no manufacture date, so we cannot report its age or plan its replacement
window. We will photograph the full dataplate on the next visit to this store and complete the equipment record at no charge.
Prepared for
·
· Service ref
Interior Climate Solutions · (469) 949-8393 · Generated Sep 22 2026
Page 3 of 4
Report page 3 of 4 · What we did, and what we verified

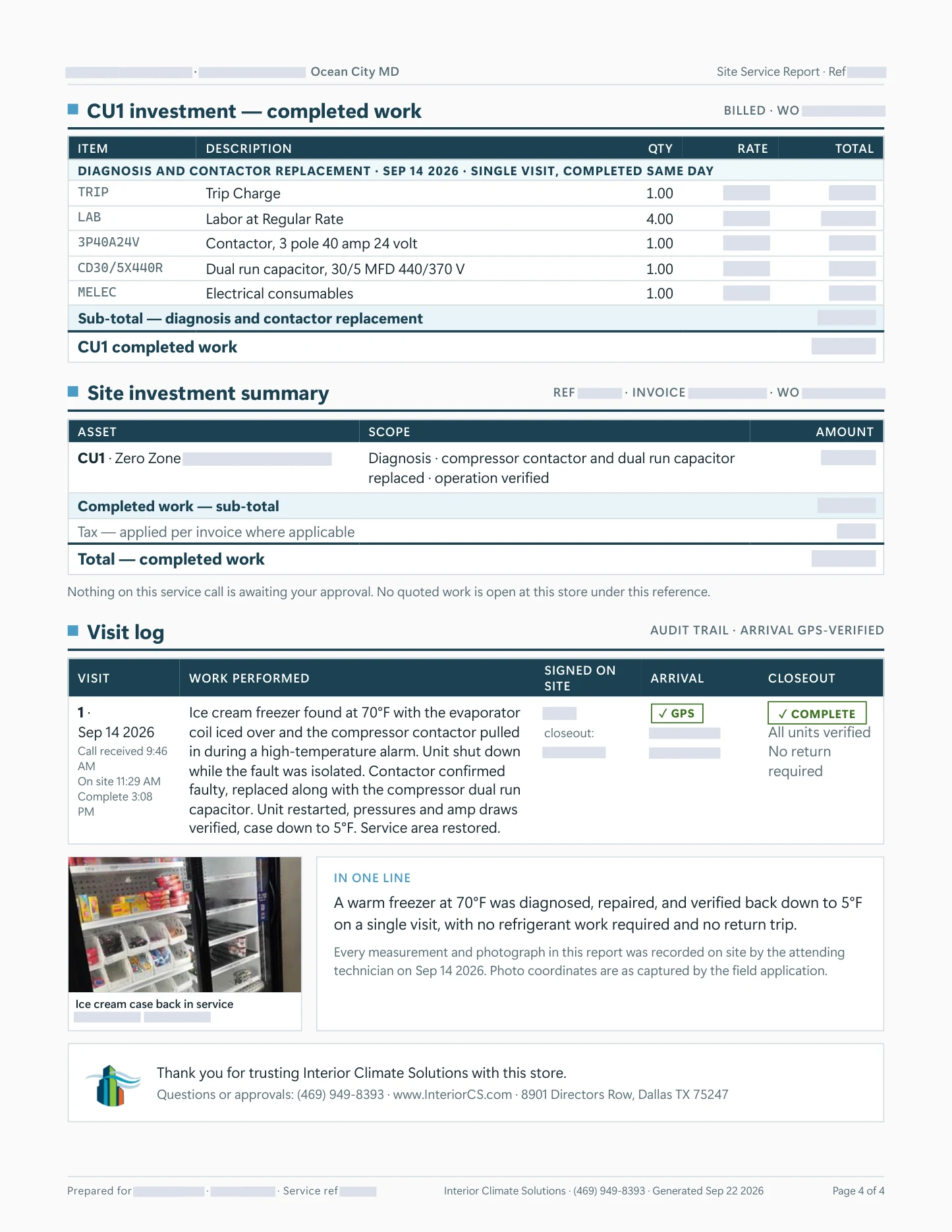

Closeout and visit log
The call came in at 9:46 a.m. and closed at 3:08 p.m. the same day.
The last page lists the parts and labor billed on the work order, with prices removed here, and the visit log with the call received, the GPS-verified arrival and the closeout.
Call received 9:46 a.m., on site 11:29 a.m., complete 3:08 p.m.
Contactor and dual run capacitor on the bill
All units verified, no return required
Read this report page as text
·
Ocean City MD
Site Service Report · Ref
CU1 investment, completed work
BILLED · WO
ITEM
DESCRIPTION
QTY
RATE
TOTAL
DIAGNOSIS AND CONTACTOR REPLACEMENT · SEP 14 2026 · SINGLE VISIT, COMPLETED SAME DAY
TRIP
Trip Charge
1.00
LAB
Labor at Regular Rate
4.00
3P40A24V
Contactor, 3 pole 40 amp 24 volt
1.00
CD30/5X440R
Dual run capacitor, 30/5 MFD 440/370 V
1.00
MELEC
Electrical consumables
1.00
Sub-total, diagnosis and contactor replacement
CU1 completed work
Site investment summary
REF
· INVOICE
· WO
ASSET
SCOPE
AMOUNT
CU1 · Zero Zone
Diagnosis · compressor contactor and dual run capacitor
replaced · operation verified
Completed work, sub-total
Tax, applied per invoice where applicable
Total, completed work
Nothing on this service call is awaiting your approval. No quoted work is open at this store under this reference.
Visit log
AUDIT TRAIL · ARRIVAL GPS-VERIFIED
VISIT
WORK PERFORMED
SIGNED ON
SITE
ARRIVAL
CLOSEOUT
1 ·
Sep 14 2026
Call received 9:46
AM
On site 11:29 AM
Complete 3:08
PM
Ice cream freezer found at 70°F with the evaporator
coil iced over and the compressor contactor pulled
in during a high-temperature alarm. Unit shut down
while the fault was isolated. Contactor confirmed
faulty, replaced along with the compressor dual run
capacitor. Unit restarted, pressures and amp draws
verified, case down to 5°F. Service area restored.
closeout:
✓ GPS
✓ COMPLETE
All units verified
No return
required
Ice cream case back in service
IN ONE LINE
A warm freezer at 70°F was diagnosed, repaired, and verified back down to 5°F
on a single visit, with no refrigerant work required and no return trip.
Every measurement and photograph in this report was recorded on site by the attending
technician on Sep 14 2026. Photo coordinates are as captured by the field application.
Thank you for trusting Interior Climate Solutions with this store.
Questions or approvals: (469) 949-8393 · www.InteriorCS.com · 8901 Directors Row, Dallas TX 75247
Prepared for
·
· Service ref
Interior Climate Solutions · (469) 949-8393 · Generated Sep 22 2026
Page 4 of 4
